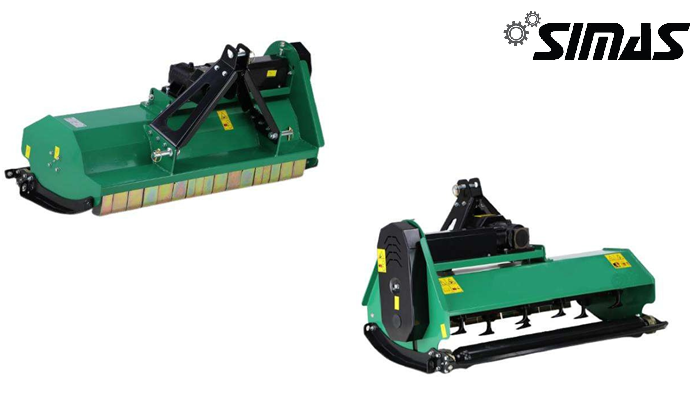

SIMAS EF Series FLAIL MOWER
EF Series (10 kw to 30 / 14 HP to 40 HP)
Description
- Flail mowers are designed to cut vines and brush, and perfect solution for overgrown with other types of vegetation and grassier.
- The mulch gets return on the soil by providing their useful nutrients to the soil structure. Flail mowers are all PTO-driven.
- The bent T (Hammered) or Y (Spike) shapes pieces of high quality blades are mounted on a horizontal rotor which works for cutting of grass, vines and brush.
- These machines are most widely utilised in the high mowing and park maintenance due to its feature of non-throwing of object during cutting.
Specifications
| Model | EF-105 | EF-115 | EF-125 | EF-135 | EF-145 | EF-155 | EF-165 | EF-175 | EF-195 | |
| TRANSMISSION | ||||||||||
| Side Transmission | V‐Belt 2xA Sec | V‐Belt 2xA Sec | V‐Belt 2xA Sec | V‐Belt 2xA Sec | V‐Belt 2xA Sec | V‐Belt 2xA Sec | V‐Belt 2xA Sec | V‐Belt 2xA Sec | V‐Belt 2xA Sec | V‐Belt 2xA Sec |
| Gear Box | Single Speed | Single Speed | Single Speed | Single Speed | Single Speed | Single Speed | Single Speed | Single Speed | Single Speed | Single Speed |
| PTO Shaft Size | T4‐800 | T4‐800 | T4‐800 | T4‐800 | T4‐800 | T4‐800 | T4‐800 | T4‐800 | T4‐800 | T4‐800 |
| PTO Turning Speed (RPM) | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
| Power Required (kw/hp) | 10‐13 kw | 14‐18 hp | 12‐15 kw | 16‐20 hp | 15‐22 kw | 20‐30 hp | 15‐22 kw | 20‐30 hp | 19‐26 kw | 25‐35 hp |
| ROTOR DETAILS | ||||||||||
| Rotor Diameter (inch/mm) | 3" | 76 mm | 3" | 76 mm | 3" | 76 mm | 3" | 76 mm | 3" | 76 mm |
| Nos. of Rotor Blade | 30 | 30 | 36 | 36 | 36 | 36 | 42 | 42 | 42 | 42 |
| Cutting Width (inch/mm) | 32" | 820 mm | 36" | 920 mm | 40" | 1020 mm | 44" | 1120 mm | 48" | 1220 mm |
| ROTOR BLADE | ||||||||||
| Blade Type | Y | Y | Y | Y | Y | Y | Y | Y | Y | Y |
| Cutting Height (inch/mm) | 0" ‐ 2" | 0‐50 mm | 0" ‐ 2" | 0‐50 mm | 0" ‐ 2" | 0‐50 mm | 0" ‐ 2" | 0‐50 mm | 0" ‐ 2" | 0‐50 mm |
| LINKAGE | ||||||||||
| Linkage Type/Hitch | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I |
| Drive Line Guarding | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| DIMENTION | ||||||||||
| L x W x H (inch/mm) | 37"x27"x28" | 950x687x722 | 42"x27"x28" | 1050x687x722 | 45"x27"x28" | 1150x687x722 | 49"x27"x28" | 1250x687x722 | 53"x27"x28" | 1350x687x722 |
| Structural Weight (lb/kg) | 221 lb | 100 kg | 254 lb | 115 kg | 287 lb | 130 kg | 320 lb | 145 kg | 353 lb | 160 kg |
| Packing Size (cm/mm) | 101x85x62 | 101x85x62 | 111x75x50 | 111x75x50 | 121x75x50 | 121x75x50 | 131x75x50 | 131x75x50 | 141x75x50 | 141x75x50 |
