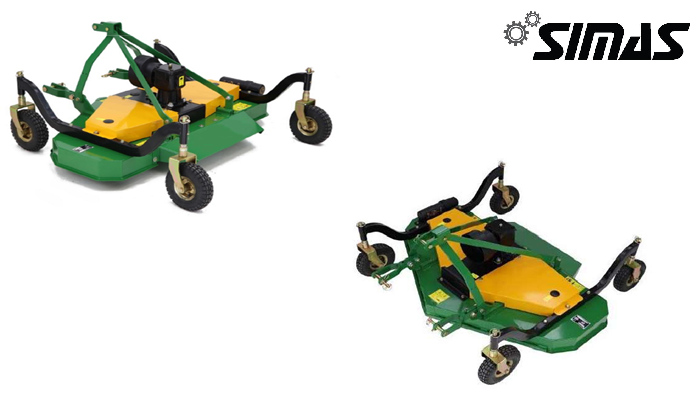

SIMAS FINISHING MOWER
FM Series (15 HP to 45 HP)
Description
- A grooming mower (or finish mower) is designed to maintain turfgrass environments like lawns, athletic fields, golf courses or any other area with grass under eight inches in length.
- It has sharp blades that give tender turf grass a sharp cut and can range from 4 to 9 ft. in length.
- The grooming mower is designed to be a simple and consistent piece of machinery, that allows for clean lawn maintenance over a larger area.
Specifications
| Model | FM-120 | FM-150 | FM-180 | |||
| TRANSMISSION | ||||||
| Top Transmission | 2 Belts | 2 Belts | 2 Belts | 2 Belts | 2 Belts | 2 Belts |
| Gear Box | Single Speed | Single Speed | Single Speed | Single Speed | Single Speed | Single Speed |
| PTO Shaft Size | T4‐800 | T4‐800 | T4‐800 | T4‐800 | T4‐1000 | T4‐1000 |
| PTO Turning Speed (RPM) | 540 | 540 | 540 | 540 | 540 | 540 |
| Power Required (HP) | 15‐25 | 15‐25 | 20‐35 | 20‐35 | 30‐45 | 30‐45 |
| MOWING BLADE | ||||||
| Mowing Width (inch/mm) | 47" | 1190 mm | 59" | 1490 mm | 71" | 1790 mm |
| Wheel Sizes | 8" | 200 mm | 8" | 200 mm | 8" | 200 mm |
| Nos. of Blades | 3 | 3 | 3 | 3 | 3 | 3 |
| Blade Type | Spike | Spike | Spike | Spike | Spike | Spike |
| Cutting Height (inch/mm) | 1" ‐ 3" | 30‐80 mm | 1" ‐ 3" | 30‐80 mm | 1" ‐ 3" | 30‐80 mm |
| LINKAGE | ||||||
| Linkage Type/Hitch | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐ I |
| Drive Line Guarding | Yes | Yes | Yes | Yes | Yes | Yes |
| DIMENTION | ||||||
| L x W x H (inch/mm) | 51"x50"x30" | 1300x1280x750 | 54"x62"x32" | 1380x1580x820 | 67"x73"x35" | 1700x1850x880 |
| Structural Weight (lb/kg) | 385 | 175 | 419 | 190 | 463 | 210 |
| Packing Size (cm) | 130x78x38 | 130x78x38 | 160x93x38 | 160x93x38 | 190x93x38 | 190x93x38 |
