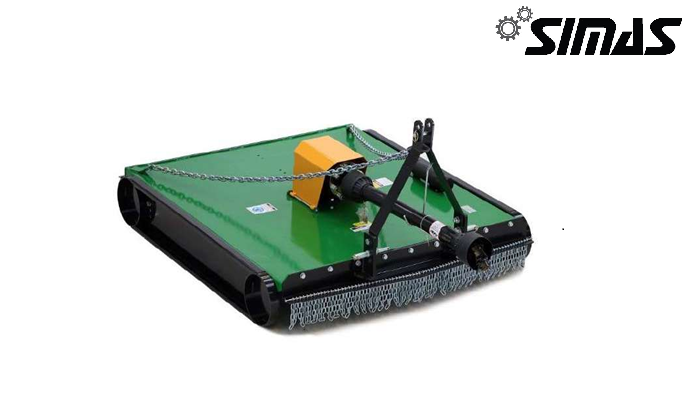

SIMAS SLASHER – HEAVY DUTY
SLH Series (15 kw to 37 kw / 20 HP to 50 HP)
Description
- Slasher is a sturdy implement which is most suitable for slashing pasture topping and shrubs.
- It also very well suffices the purpose of maintaining grasslands, road verges and lawn.
- Rotary Slasher or Slasher allows one to perform the most versatile method of grass cutting i.e. slashing.
Specifications
| Model | SLH-135 | SLH-155 | ||||
| TRANSMISSION | ||||||
| Top Transmission | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive |
| Gear Box | 40 HP | 40 HP | 40 HP | 40 HP | 40 HP | 40 HP |
| PTO Shaft Size | T4‐800 | T4‐800 | T4‐800 | T4‐800 | T4‐1000 | T4‐1000 |
| PTO Turning Speed (RPM) | 540 | 540 | 540 | 540 | 540 | 540 |
| Power Required (kw/hp) | 15‐26 kw | 20‐35 hp | 15‐26 kw | 20‐35 hp | 26‐37 kw | 35‐50 hp |
| MOWING BLADE | ||||||
| Mowing Width (inch/mm) | 54" | 1365 mm | 61" | 1560 mm | 70" | 1765 |
| Nos. of Blades | 2 | 2 | 2 | 2 | 2 | 2 |
| Blade Type | Spike | Spike | Spike | Spike | Spike | Spike |
| Cutting Height (inch/mm) | 1.77"‐5.31" | 45‐135 mm | 1.77"‐5.31" | 45‐135 mm | 1.77"‐5.31" | 45‐135 mm |
| Deck Thickness | 6 Gauge | 5 mm | 6 Gauge | 5 mm | 4 Gauge | 6 mm |
| LINKAGE | ||||||
| Linkage Type/Hitch | CAT ‐ I | CAT ‐ I | CAT ‐ I | CAT ‐I | CAT ‐ I | CAT ‐ I |
| Drive Line Guarding | Yes | Yes | Yes | Yes | Yes | Yes |
| DIMENTION | ||||||
| L x W x H (inch/mm) | 60"x60"x38" | 1528x1514x959 | 72"x68"x38" | 1828x1714x959 | 79"x73"x38" | 2000x1850x959 |
| Structural Weight (lb/kg) | 860 lb | 390 kg | 1058 lb | 480 kg | 1168 lb | 530 kg |
| Packing Size (cm/mm) | 154x163x53 | 1540x1630x530 | 174x183x53 | 1740x1830x530 | 184x193x53 | 1840x1930x530 |
