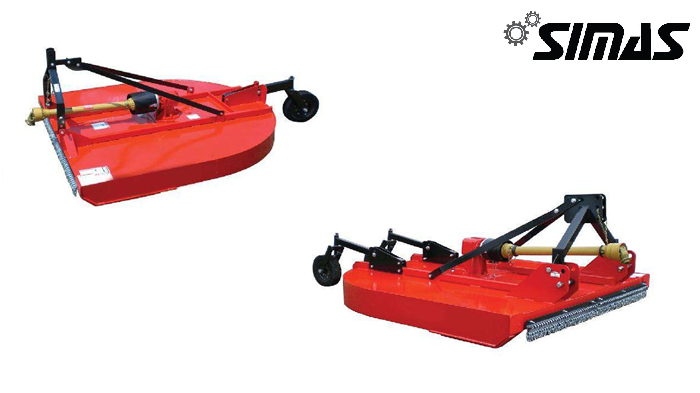

SIMAS SLASHER – ROUND BACK
SLXR Series (11 kw to 30 kw / 15 HP to 50 HP)
Description
- Slasher is a sturdy implement which is most suitable for slashing pasture topping and shrubs.
- It also very well suffices the purpose of maintaining grasslands, road verges and lawn.
- Rotary Slasher or Slasher allows one to perform the most versatile method of grass cutting i.e. slashing.
Specifications
| Model | SLXR-4FT | SLXR-5FT | SLXR-6 FT | SLXR-7 FT | ||||
| TRANSMISSION | ||||||||
| Top Transmission | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive | Gear Drive |
| Gear Box | 40 HP | 40 HP | 40 HP | 40 HP | 40 HP | 40 HP | 80 HP | 80 HP |
| PTO Shaft Size | T4-800 | T4-800 | T4-800 | T4-800 | T4-1000 | T4-1000 | T4-1000 | T4-1000 |
| PTO Turning Speed (RPM) | 540 | 540 | 540 | 540 | 540 | 540 | 540 | 540 |
| Power Required (kw/hp) | 11-19 kw | 15-25 hp | 15-26 kw | 20-35 hp | 15-30 kw | 20-40 hp | 22-37 kw | 30-50 hp |
| MOWING BLADE | ||||||||
| Mowing Width (inch/mm) | 42" | 1060 mm | 60" | 1524 mm | 72" | 1828 mm | 84" | 2134 mm |
| Nos. of Blades | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Blade Type | Spike | Spike | Spike | Spike | Spike | Spike | Spike | Spike |
| Cutting Height (inch/mm) | 1.5"-9" | 38-228 mm | 1.5" – 9" | 38-228 mm | 1.5" – 9" | 38-228 mm | 1.5"-9" | 38-228 mm |
| Deck Thickness | 1/8" | 3 mm | 1/8" | 3 mm | 1/8" | 3 mm | 1/8" | 4 mm |
| Tailwheel | Single | Single | Single | Single | Single | Single | Double | Double |
| LINKAGE | ||||||||
| Linkage Type/Hitch | CAT – I | CAT – I | CAT – I | CAT -I | CAT – I | CAT – I | CAT – I | CAT – I |
| Drive Line Guarding | Yes | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| DIMENTION | ||||||||
| L x W x H (inch/mm) | 52"x48"x18" | 1328x1214x457 | 86" x 64" x 18" | 2184x1625x457 | 93" x 75" x 18" | 2362x1905x457 | 100"X71"x38" | 2540x1803x457 |
| Structural Weight (lb/kg) | 551 lb | 250 Kg | 650 Lb | 295 Kg | 772 lb | 350 kg | 915 lbs | 415 Kg |
| Packing Size (cm/mm) | 123x133x53 | 1230x1330x530 | 154x163x53 | 1540x1630x530 | 174x183x53 | 1740x1830x530 | 184x193x53 | 1840x1930x530 |
