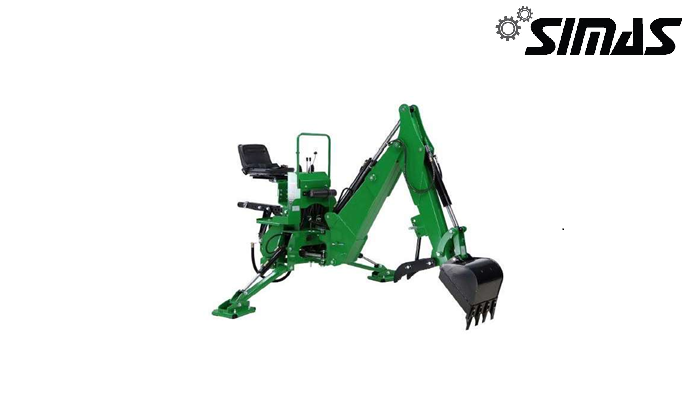

SIMAS BACKHOE
SMALL/MEDIUM/HEAVY DUTY SERIES (18 HP to 80 HP)
Description
- A backhoe—also called rear actor or back actor—is a type of excavating equipment, or digger, consisting of a digging bucket on the end of a two-part articulated arm.
- It is typically mounted on the back of a tractor or front loader, the latter forming a “backhoe loader”.
- The section of the arm closest to the vehicle is known as the boom, while the section that carries the bucket is known as the dipper (or dipper-stick).
Specifications
| Model |
|
Small |
|
Medium |
|
Large |
| Tractor HP |
18 ‐ 35 HP |
|
25‐45 hp |
|
40‐80 hp |
|
| 3‐Point Linkage |
CAT ‐ I |
|
CAT ‐ I |
|
CAT‐I |
|
| Structure Weight |
772 lb |
350 Kg |
992 lb |
450 kg |
1213 lb |
550 kg |
| (A) Loading Height |
60" |
1524 mm |
70" |
1780 mm |
73" |
1850 mm |
| (B) Digging Depth |
78" |
1980 mm |
90" |
2290 mm |
102" |
2590 mm |
| © Max. Height |
59" |
1500 mm |
69" |
1750 mm |
77" |
1960 mm |
| Leg Spread |
78" |
1980 mm |
89" |
2260 mm |
89" |
2260 mm |
| Swing Angle (boom) |
180~ |
180~ |
180~ |
180~ |
180~ |
180~ |
| Bucket Width |
11" |
290 mm |
12" |
300 mm |
12" |
300 mm |
| Shipping Weight (Lbs/Kg) |
904 lb |
410 kg |
1146 lb |
520 kg |
1389 lb |
630 kg |
