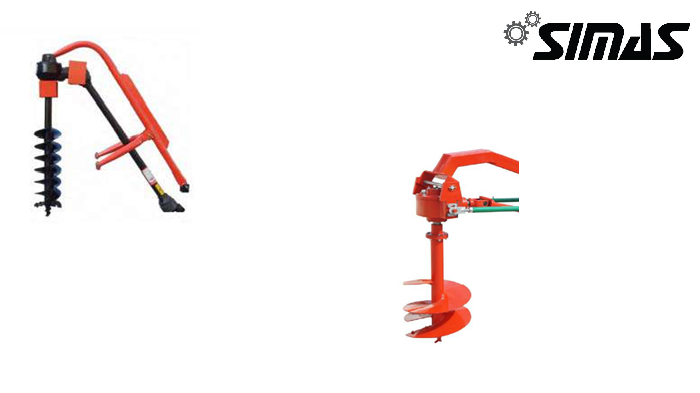

SIMAS POST HOLE DIGGER
PHDL Series (15 KW to 60 KW / 20 HP to 80 HP)
Description
- A post hole clam-shell digger, also called post hole pincer or simply post hole digger, is a tool consisting of two articulated shovel-like blades, forming an incomplete hollow cylinder about a foot long and a few inches wide, with two long handles that can put the blades in an “open” position or a “closed” position.
- Post hole Digger is a tool used to dig holes in the ground, for general purposes such as setting fence and sign posts or planting saplings.
- It actually consists of a rotating vertical metal rod with one or more blades attached at the lower part, that cut or scrape the soil.
Specifications
| Model | PHD‐09 | PHD‐12 | PHD‐14 | PHD‐18 | PHD‐20 | |||||
| Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | Imperial | Metric | |
| Drill Diameter (inch/mm) | 9" | 200 mm | 12" | 300 mm | 14" | 350 mm | 18" | 450 mm | 20" | 500 mm |
| Length of Augur (inch/mm) | 43" | 1100 mm | 43" | 1100 mm | 43" | 1100 mm | 43" | 1100 mm | 43" | 1100 mm |
| Dig Depth (inch/mm) | 31" | 800 mm | 31" | 800 mm | 31" | 800 mm | 31" | 800 mm | 31" | 800 mm |
| PTO Turning Speed (RPM) | 540 | 540 | 540 | 540 | 540 | 540 mm | 540 | 540 | 540 | 540 |
| Power Required (kw/hp) | 15‐30 | 20‐40 | 15‐30 | 20‐40 | 22‐34 | 30‐45 | 26‐60 | 35‐80 | 26‐60 | 35‐80 |
| LINKAGE | ||||||||||
| Linkage Type/Hitch | CAT ‐ I | |||||||||
| DIMENTION | ||||||||||
| Structural Weight (lb/kg) | 247 lb | 112 kg | 260 lb | 118 kg | 300 lb | 136 kg | 324 lb | 147 kg | 346 lb | 157 kg |
| Packing Size (cm) | 165x65x30 | 1650x650x300 | 165x65x30 | 1650x650x370 | 165x65x30 | 1650x560x370 | 165x65x30 | 1650x560x550 | 165x65x30 | 1650x560x550 |
